Product Summary
The 54LS26DM is a Dual 5-lnput NOR Gate.
Parametrics
54LS26DM absolute maximum ratings: (1)Supply Voltage 7V; (2)Input Voltage 7V ; (3)Operating Free Air Temperature Range: -55℃ to +125℃; (4)Storage Temperature Range: -65℃ to +150℃.
Features
54LS26DM features: (1)Input Clamp Voltage : -1.5 V; (2)High Level Output Voltage: 2.5V; (3)Low Level Output Voltage: 0.4V; (4)Input Current @ Max Input Voltage: 0.1 mA; (5)High Level Input Current : 20 μA.

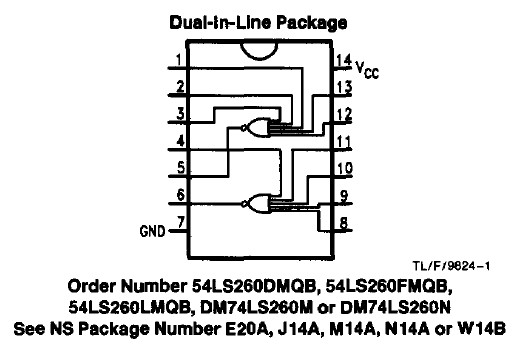

Diagrams
