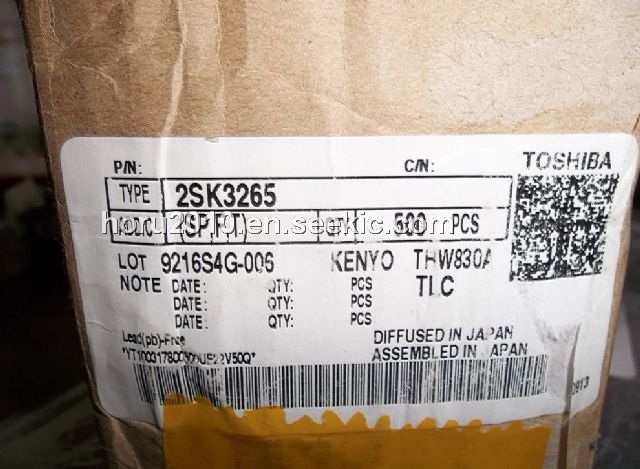

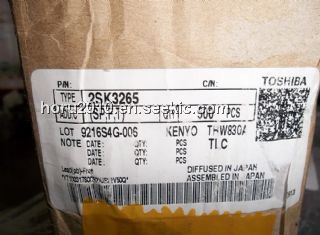

2SK3265

2sk3265, Silicon N Channel MOS Type DC−DC Converter, DIP, 700V, 10A, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.79~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.50 / Piece
10 ~ 100 :	1.58 / Piece
100 ~ 1000 :	0.79 / Piece

PartNumber:: 2SK3265

Brand:: Toshiba Semiconductor - Toshiba | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: 2SK3265 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-22

From Other Seller

Part Number:2SK3265
US $0.79 - 2.50
Quantity:

piece

Product Summary

The 2sk3265 is a Silicon N Channel MOS Type Chopper Regulators DC−DC Converter and Motor Drive applications.

Parametrics

2sk3265 absolute maximum ratings: (1)Drain.source voltage, VDSS: 700 V; (2)Drain.gate voltage (RGS = 20 kΩ), VDGR: 700 V; (3)Gate.source voltage, VGSS: ±30 V; (4)Drain current, DC (Note 1), ID: 10 A; Pulse (Note 1), IDP: 30 A; (5)Drain power dissipation, PD: 45 W; (6)Single pulse avalanche energy, EAS: 420 mJ; (7)Avalanche current, IAR: 10 A; (8)Repetitive avalanche energy, EAR: 4.5 mJ; (9)Channel temperature, Tch: 150℃; (10)Storage temperature range, Tstg: -55 to 150℃.

Features

2sk3265 features: (1)Low drain.source ON resistance: RDS (ON) = 0.72 Ω (typ.); (2)High forward transfer admittance: |Yfs| = 7.0 S (typ.); (3)Low leakage current: IDSS = 100 μA (max) (VDS = 700 V); (4)Enhancement.mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA).
