Product Summary

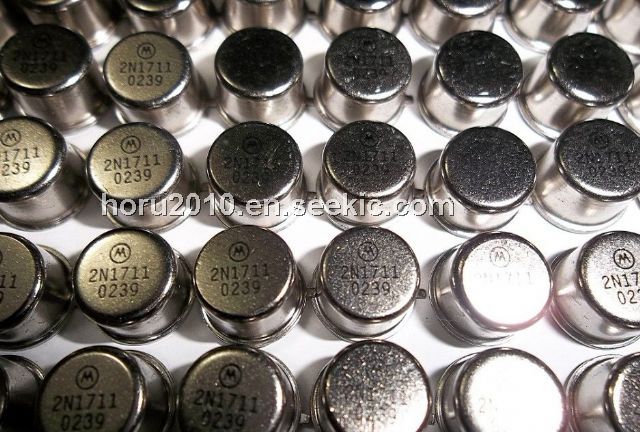

The 2N1711 is an NPN medium power transistor in a TO-39 metal package. The applications of the 2N1711 include DC and wideband amplifiers.

Parametrics

2N1711 absolute maximum ratings: (1)VCBO, collector-base voltage open emitter: 75 V; (2)VCEO, collector-emitter voltage open base: 50 V; (3)ICM, peak collector current: 1 A; (4)Ptot, total power dissipation Tamb ≤ 25℃: 0.8 W; (5)hFE, DC current gain IC = 150 mA; VCE = 10 V: 100 to 300; (6)fT, transition frequency IC = 50 mA; VCE = 10 V; f = 100 MHz: 70MHz.

Features

2N1711 features: (1)High current (max. 500 mA); (2)Low voltage (max. 50 V).

Diagrams

2N1711 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N1711
2N1711
STMicroelectronics
Transistors Bipolar (BJT) NPN General Purpose
Data Sheet
0-1: $0.45
1-10: $0.39
10-100: $0.34
100-250: $0.29
