Product Summary

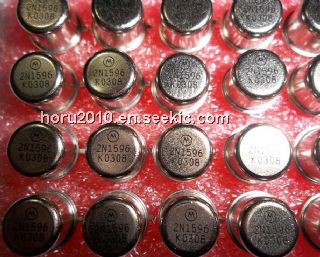

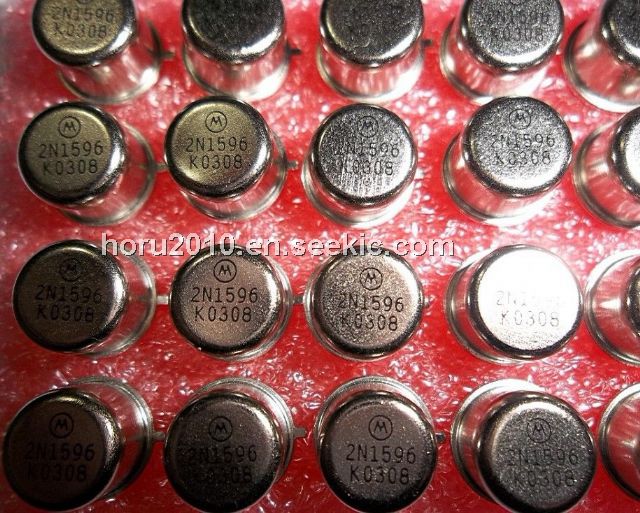

The 2N1596 is an industrial-type, low-current silicon controlled rectifier in a three-lead package ideal for printed-circuit applications. Current handling capability of 1.6 amperes at junction temperetures to 125℃.
Parametrics
2N1596 absolute maximum ratings: (1)VRSM(REP) Peak reverse blocking voltage: 100V; (2)IT(RMS), Forward Current RMS (all conduction angles): 1.6 Amp; (3)ITSM, Peak Surge Current (One Cycle, 60Hz, TJ=-65 to +125℃): 15 Amp; (4)PGM, Peak Gate Power - Forward: 0.1 W; (5)PG(AV), Average Gate Power - Forward: 0.01 W; (6)IGM, Peak Gate Current - Forward: 0.1 Amp; (7)VGFM, Peak Gate Voltage - Forward: 10 V; (8)VGRM, Peak Gate Voltage - Reverse: 10 V; (9)TJ, Operating Junction Temperature Range: -65 to +125℃; (10)TSTG, Storage Temperature Range: -65 to +150℃.
Features
2N1596 features: (1)VDRM, Peak Forward Blocking Voltage, Min: 100V; (2)IRRM, Peak Reverse Blocking Current (Rated VDRM, TJ =125℃), Max: 1.0 mA.

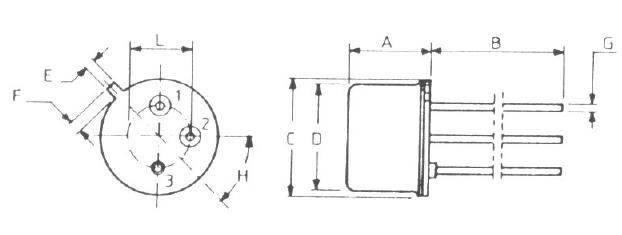

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N1596 |
Other |
|
Data Sheet |
Negotiable |
|
||||
