Product Summary
The 25C040 is a 4 Kbit serial Electrically Erasable PROM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the 25C040 is controlled through a Chip Select (CS) input.
Parametrics
25C040 absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC+1.0V; (3)Storage temperature: -65℃ to 150℃; (4)Ambient temperature under bias: -65℃ to 125℃; (5)ESD protection on all pins: 4 KV.
Features
25C040 features: (1)Low-power CMOS technology: Write current: 3 mA, typical; Read current: 500μA, typical; Standby current: 500 nA, typical; (2)512 x 8-bit organization; (3)16 byte page; (4)Write cycle time: 5 ms max.; (5)Self-timed Erase and Write cycles; (6)Block write protection: Protect none, 1/4, 1/2 or all of array; (7)Built-in write protection: Power on/off data protection circuitry; Write enable latch; Write-protect pin; (8)Sequential read; (9)High reliability: Endurance: 1M cycles; Data retention: > 200 years; ESD protection: > 4000V; (10)8-pin PDIP, SOIC and TSSOP packages.

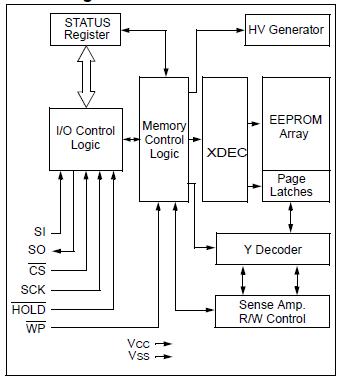

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25C040 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
25C040/P |
Microchip Technology |
EEPROM 512x8 - 5V |
Data Sheet |
|
|
|||||||||||||
25C040/SN |
Microchip Technology |
EEPROM 512x8 - 5V |
Data Sheet |
|
|
|||||||||||||
25C040-E/P |
Microchip Technology |
EEPROM 512x8 - 5V |
Data Sheet |
|
|
|||||||||||||
25C040-E/PG |
Microchip Technology |
EEPROM 512x8 - 5V Lead Free Package |
Data Sheet |
Negotiable |
|
|||||||||||||
25C040-E/SN |
Microchip Technology |
EEPROM 512x8 - 5V |
Data Sheet |
|
|
|||||||||||||
25C040-E/SNG |
Microchip Technology |
EEPROM 512x8 - 5V Lead Free Package |
Data Sheet |
Negotiable |
|
|||||||||||||
25C040-I/P |
Microchip Technology |
EEPROM 512x8 - 5V |
Data Sheet |
|
|
