Product Summary

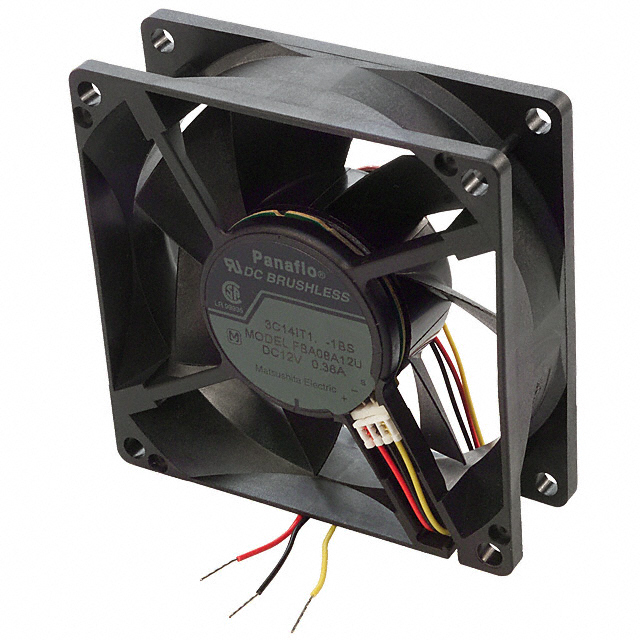

The FBA08A12U is a 1A Case Fan.
Parametrics
FBA08A12U general specifications: (1)rated voltage: 12V; (2)operating voltage: 7 to 13.8V; (3)rated current: 270mA; (4)rated input: 3.24W; (5)nominal speed: 3450r/min.
Features
FBA08A12U features: (1)Operating Temperature: -10°C to +70°C (65% RH); (2)Storage Temperature: -40°C to +75°C (65% RH); (3)Bearing Type: Hydro Wave; (4)Connector Type: Plug-In; (5)Aerodynamic blade and venturi design; (6)Locked rotor protection and auto-start function; (7)Lower circuit noise by new IC; (8)Optional third lead wire signal (Locked rotor alarm sensor, 2PPR); (9)Easy value-add access to lead wires via plug-in connector on housing.

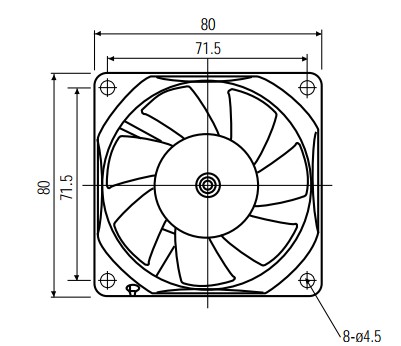

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FBA08A12U1A |
|
FAN 12VDC 3.24W 80MM FBA HYDRO |
Data Sheet |
Negotiable |
|
||||||
 |
FBA08A12U1BO |
|
FAN 12VDC 80X25.5MM WITH SENSOR |
Data Sheet |
|
|
||||||
 |
FBA08A12U1BS |
|
FAN 80X25MM 12 VOLT W/LOCKED R |
Data Sheet |
Negotiable |
|
||||||
