Product Summary

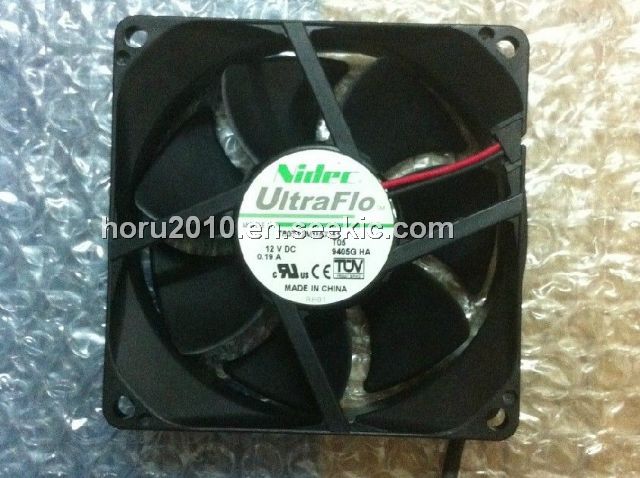

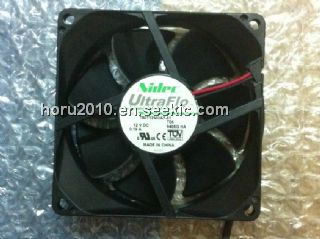

The T80T12muA7-51 is a Tube Axial Cooling Fan.

Parametrics

T80T12muA7-51 absolute maximum ratings: (1)Air Flow: 40 CFM; (2)Max.Static Pressure: 0.17 inwg; (3)Nominal Voltage: 12 V; (4)Voltage Range: 7.0 to 13.8 V; (5)Operating Current: 0.19 A; (6)Input Power: 2.3 W; (7)Fan Speed: 3100 rpm; (8)Sound Pressure: 30.5 dBA; (9)Bearing Operating Temperature: -10 to +70 ℃.

Features

T80T12muA7-51 features: (1)Durable Magnetically Stabilized NBRX Sleeve Bearing Design; (2)Current-Limit Protection; (3)Optional Open-Collector Tachometer or Locked Rotor Alarm; (4)Plastic Housing and Impeller Rated V-O; (5)12 V and 24 V Models.

Diagrams

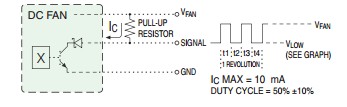

T80T12muA7-51 block diagram
