Product Summary

The RURU10060 is an ultrafast diode with soft recovery characteristics (trr < 80ns). It has low forward voltage drop and is of silicon nitride passivated ion-implanted epitaxial planar construction. The applicaitons of the RURU10060 are (1)Switching Power Supplies; (2)Power Switching Circuits; (3)General Purpose.

Parametrics

RURU10060 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM 600 V; (2)Working Peak Reverse Voltage, VRWM 600 V; (3)DC Blocking Voltage,VR 600 V; (4)Average Rectified Forward Current, IF(AV) 100 A; (5)Repetitive Peak Surge Current, IFRM 200 A; (6)Nonrepetitive Peak Surge Current, IFSM 1000 A; (7)Maximum Power Dissipation, PD 210 W; (8)Avalanche Energy , EAVL 50 mJ; (9)Operating and Storage Temperature, TSTG, TJ -65 to 175℃.

Features

RURU10060 features: (1)Ultrafast with Soft Recovery: <80ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage: 600V; (4)Avalanche Energy Rated; (5)Planar Construction.

Diagrams

RURU10060 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

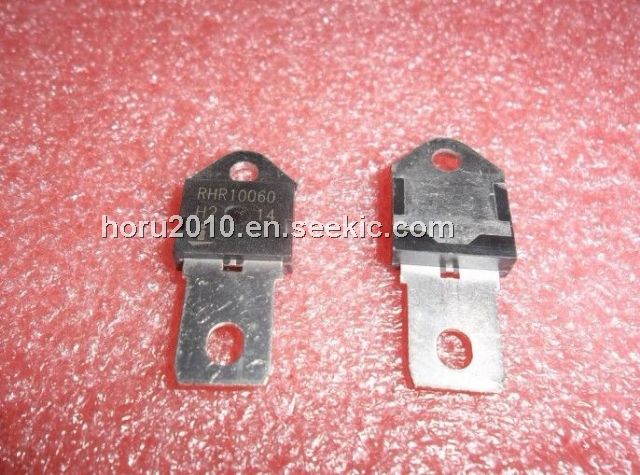

RURU10060
RURU10060

Fairchild Semiconductor

Rectifiers TO-218 Ultra Fast

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RURU100120
RURU100120

Fairchild Semiconductor

Rectifiers 100A 1200V

Data Sheet

Negotiable
RURU10060
RURU10060

Fairchild Semiconductor

Rectifiers TO-218 Ultra Fast

Data Sheet

Negotiable
RURU150100
RURU150100

Fairchild Semiconductor

Rectifiers 100A 1000V

Data Sheet

Negotiable
RURU150120
RURU150120

Other


Data Sheet

Negotiable
RURU15060
RURU15060

Fairchild Semiconductor

Rectifiers TO-218 Ultra Fast

Data Sheet

Negotiable
RURU15070,
RURU15070,

Other


Data Sheet

Negotiable
