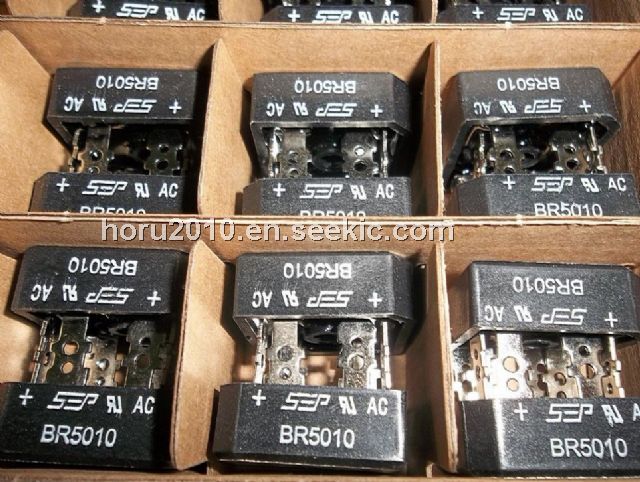

Product Summary

The BR5010 is a silicon bridge rectifiers.

Parametrics

BR5010 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage VRRM: 1000 Volts; (2)Maximum RMS Voltage VRMS: 700 Volts; (3)Maximum DC Blocking Voltage VDC: 1000 Volts; (4)Maximum Average Forward Current Tc = 55°C IF(AV):: 50 Amps.; (5)Peak Forward Surge Current Single half sine wave Superimposed on rated load (JEDEC Method)IFSM: 500 Amps.; (6)Current Squared Time at t < 8.3 ms. I2t: 660 A2S; (7)Maximum Forward Voltage per Diode at IF=25 Amp. VF: 1.1 Volts:; (8)Typical Thermal Resistance (Note 1)RqJC: 1.0 °C/W; (9)Operating Junction Temperature Range TJ: - 40 to + 150 °C; (10)Storage Temperature Range: -40 to +150 °C.

Features

BR5010 features: (1)High case dielectric strength; (2)High surge current capability; (3)High reliability; (4)High efficiency; (5)Low reverse current; (6)Low forward voltage drop.

Diagrams

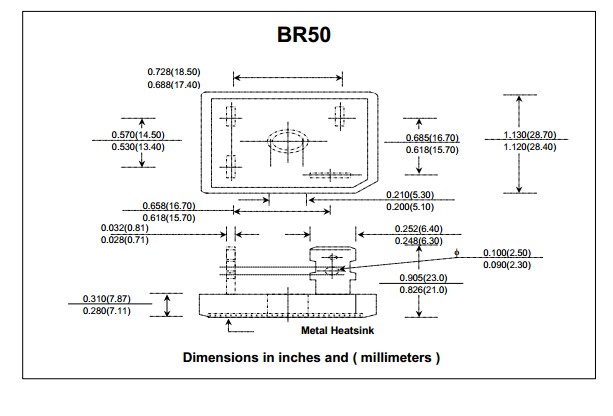

BR5010 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BR5010
BR5010

Other


Data Sheet

Negotiable
BR5010-G
BR5010-G

Comchip Technology

Bridge Rectifiers DIODE RECT BRIDGE 50A 1000V

Data Sheet

0-500: $1.22
500-1000: $1.03
1000-2000: $0.97
2000-5000: $0.94
BR5010W-G
BR5010W-G

Comchip Technology

Bridge Rectifiers DIODE RECT BRIDGE 25A 1000V

Data Sheet

0-500: $1.21
500-1000: $1.01
1000-2000: $0.97
2000-5000: $0.93
BR5010W
BR5010W

Other


Data Sheet

Negotiable
BR5010L-G
BR5010L-G


RECTIFIER BRIDGE 1000V 50A BR-L

Data Sheet

0-400: $1.12
