30CTQ060

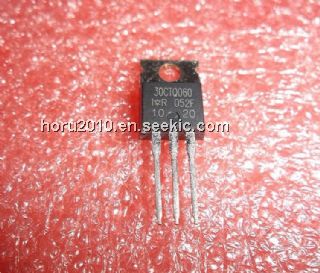

30CTQ060, center tap Schottky rectifier, 60V, 15A, 13mJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.39~0.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	0.39 / Piece

PartNumber:: 30CTQ060

Brand:: International Rectifier - IR | D/C: 10+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-01

From Other Seller

Part Number:30CTQ060
US $0.39 - 0.39
Quantity:

piece

Product Summary

The 30CTQ060 is a kind of center tap Schottky rectifier. It is designed for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

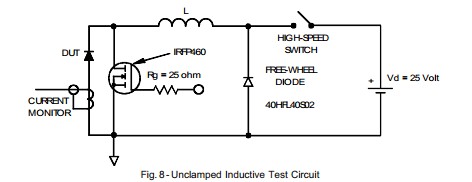

30CTQ060 absolute maximum ratings: (1)VR, Max. DC Reverse Voltage (V): 60 V; (2)VRWM, Max. Working Peak Reverse Voltage (V): 60 V; (3)IF(AV), Max. Average Forward Current when 50% duty cycle @ TC = 105°C, rectangular wave form: (Per Leg): 15 A; (Per Device): 30 A; (4)IFSM, Max. Peak One Cycle Non-Repetitive Surge Current (Per Leg): 1000 A when 5μs Sine or 3μs Rect. pulse and 260 A when 10ms Sine or 6ms Rect. pulse; (5)EAS, Non-Repetitive Avalanche Energy (Per Leg): 13 mJ when TJ = 25℃, IAS = 1.50 Amps, L = 11.5 mH; (6)IAR, Repetitive Avalanche Current (Per Leg): 1.50 A when Current decaying linearly to zero in 1 μsec and Frequency limited by TJ max. VA = 1.5 x VR typical.

Features

30CTQ060 features: (1)150℃ TJ operation; (2)Center tap configuration; (3)Very low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.
