Product Summary

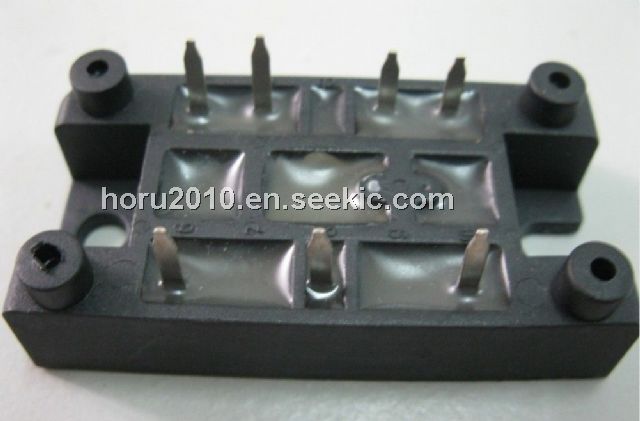

The VUO80-16N01 is a Three Phase Rectifier Bridge. The VUO80-16N01 is designed for: (1)Supplies for DC power equipment; (2)Input rectifiers for PWM inverter; (3)Battery DC power supplies; (4)Field supply for DC motors.
Parametrics
VUO80-16N01 absolute maximum ratings: (1)VRSM: 1700V; (2)VRRM: 1600V; (3)IdAV, TK = 90℃, module: 82 A; (4)IdAVM, module: 82 A; (5)TVJ: -40 to +150 ℃; (6)TVJM: 150 ℃; (7)Tstg: -40 to +130℃; (8)VISOL: 50/60 Hz, RMS, t = 1 min: 3000 V; IISOL≦1 mA, t = 1 s: 3600 V.
Features
VUO80-16N01 features: (1)Package with DCB ceramic base plate; (2)Isolation voltage 3600 V; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop; (6)Leads suitable for PC board soldering.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO80-16NO1 |
Ixys |
Bridge Rectifiers 80 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
VUO80-08NO1 |
Ixys |
Bridge Rectifiers 3-PHS RECTFR BRDGE 800V, 80A |
Data Sheet |
Negotiable |
|
||||
|
VUO80-12NO1 |
Ixys |
Bridge Rectifiers 80 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
VUO80-14NO1 |
Ixys |
Bridge Rectifiers 80 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
VUO80-16NO1 |
Ixys |
Bridge Rectifiers 80 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
|
VUO80-18NO1 |
Ixys |
Bridge Rectifiers 80 Amps 1800V |
Data Sheet |
Negotiable |
|
||||
|
VUO82 |
Other |
|
Data Sheet |
Negotiable |
|
||||
