Product Summary

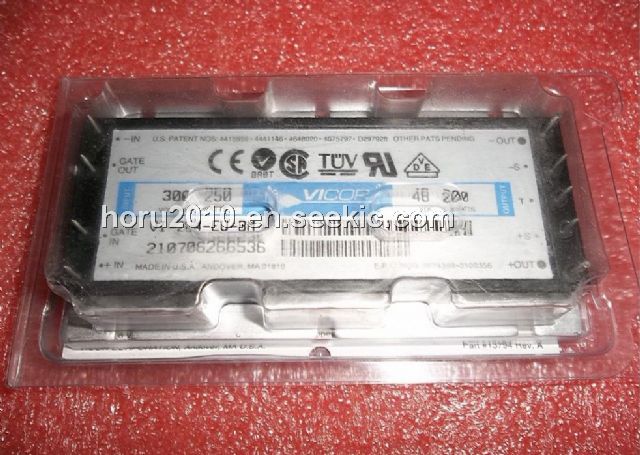

The VI-264-EU-BM is a zero-current-switching component-level DC-DC converter. Operating at frequencies up to 2 MHz, the VI-264-EU-BM offers exceptional power density, efficiency, noise performance, reliability and ease of use.

Parametrics

VI-264-EU-BM absolute maximum ratings: (1)input voltage, nominal: 300V; input range full power: 200-400V; low line 75% nax oiwer: 170W; transient: 425V; (2)output voltage: 48V; (3)operating temperature: -40 to 85℃; (4)storage temperature: -55 to 100℃; (5)output power/current Vout: 150W when ≧5V; 30A when <5V.

Features

VI-264-EU-BM features: (1)RoHS compliant (VE-200); (2)Up to 50 W/in3; (3)cULus, cTUVus; (4)Up to 90% efficiency; (5)Size: 4.6" × 2.4" × 0.5" (116,8 × 61,0 × 12,7mm); (6)Remote sense and current limit; (7)OVP, thermal shutdown; (8)Logic disable; (9)Wide range output adjust; (10)Compatible power booster modules; (11)ZCS power architecture; (12)Low noise FM control; (13)CE Marked.

Diagrams

VI-264-EU-BM package dimensions
