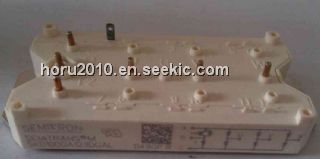

Product Summary
The SKD100GA123DGAL is a power bridge rectifier. The applications of it are three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers.
Parametrics
SKD100GA123DGAL absolute maximum ratings: (1)ID TC=45℃: 24 A; (2)IFSM Tvj= 25℃, 10 ms: 1150 A; (3)i2t Tvj= 25℃, 8.3 to 10 ms: 6600 A2s; (4)VF Tvj= 25℃, IF= 150 A: 1.35 V; (5)VTO Tvj= 125℃: 0.85 V; (6)FT Tvj= 125℃: 5 mΩ; (7)Rth(j-c) per diode: 0.85 K/W; (8)Tvj: -40℃ to +125℃.
Features
SKD100GA123DGAL features: (1)robust plastic case with screw terminal; (2)large, isolated base plate; (3)blocking voltage to 1600 V; (4)High surge currents; (5)three phase bridge rectifier; (6)easy chassics mounting; (7)UL recognized, file NO. E 63532.

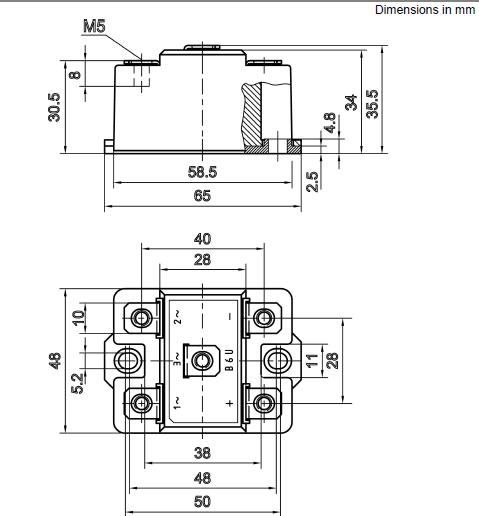

Diagrams
