Product Summary

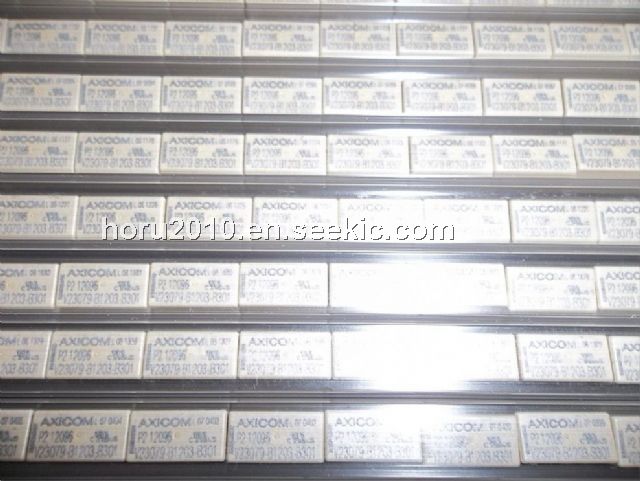

The V23079-B1203-B301 is a realy. It is suitable for Communications equipment, linecard application (ringing and test access) PABX Voice over IP, Office equipment, Measurement and control equipment, Automotive equipment CAN bus, keyless entry, speaker switch, Medical equipment, Consumer electronics and Set Top Boxes, HiFi.
Parametrics
V23079-B1203-B301 absolute maximum ratings: (1)Contact assembly: Bifurcated contacts; (2)Contact material: Silver nickel, gold-covered; (3)Limiting continuous current at max. ambient temperature; (4)Maximum switching current: 2A; (5)Maximum swichting voltage: 5A; (6)Maximum switching capacity: 220Vdc; 250Vac; (7)Maximum switching capacity: 60W, 62.5VA; (8)Thermoelectric potential: < 10 μV; (9)Minimum switching voltage: 100 mV.
Features
V23079-B1203-B301 features: (1)Standard telecom relay (ringing and test access); (2)Slim line 15 x 7.5 mm, 0.590 x 0.295 inch; (3)Switching current 5 A; (4)2 changeover contacts (2 form C / DPDT); (5) Bifurcated contacts; (6)Immersion cleanable; (7)High sensitivity results in low nominal power consumption 140 mW for non-latching and latching with 2 coils 70 mW for latching with 1 coil; (8)For single coil version:; (9)Surge voltage resistance between contact and coil for single coil version: 2.5 kV (2 / 10 μsec) meets the Bellcore Requirement GR-1089; 1.5 kV (10 / 160 μsec) meets FCC Part 68.
