Product Summary

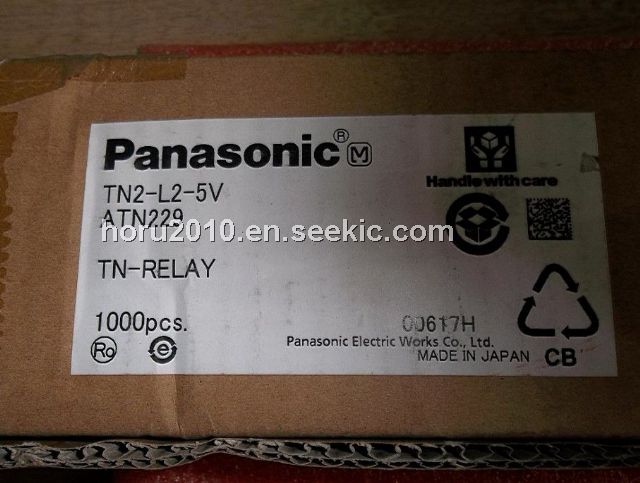

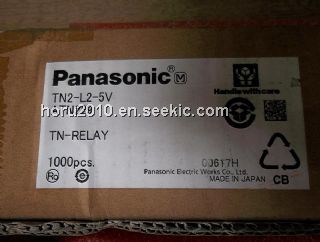

The TN2-L2-5V is a 140mW slim polarized relay.
Parametrics
TN2-L2-5V general specifications: (1) Nominal switching capacity (resistive load): 1 A 30 V DC, 0.5 A 125 V AC; (2) Max. Switching power (resistive load):30 W, 62.5 VA; (3) Max. Switching voltage: 110 V DC, 125 V AC; (4) Max. Switching current: 1A; (5) Min. switching capacity: 10μA 10 mV DC; (6) Arrangement: 2 Form C; (7) Initial contact resistance, max. (By voltage drop 6 V DC 1A):60mΩ; (8) Contact material: Gold-clad silver.
Features
TN2-L2-5V features: (1)Small size for minimal PC board mounting requirements; (2)Small header area makes higher density mounting possible; (3)High sensitivity: 140mW nominal operating power (single side stable 3-12V type); (4)Surge voltage withstand: 1500 V FCC Part 68; (5)Sealed construction allows automatic cleaning; (6)Self-clinching terminal also available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TN2-L2-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 5VDC DPDT 2 COIL LATCHING PCB |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TN2-12 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TN2-12V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TN2-24V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TN2-3V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 3VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TN2-3V-3 |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form C 1 Form A Gold Contact 3V |
Data Sheet |
|
|
||||||||||||
|
TN2-4.5V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
