Product Summary

The OMI-SH-112LM,000 is a 16A Miniature Power PC Board Relay.

Parametrics

OMI-SH-112LM,000 absolute maximum ratings: (1)Rated Coil Voltage: 12V; (2)Nominal Current: 44.4mA; (3)Coil Resistance: 270±10% Ohm; (4)Must Operate Voltage: 9V; (5)Must Release Voltage: 1.2V; (6)Operating Temperature Range: -30℃ to +70℃; (7) Operating Humidity: 20 to 85% RH. (Non-condensing).

Features

OMI-SH-112LM,000 features: (1)Meet UL 508, VDE0435 and SEMKO requirements; (2)1 Form A and 1 Form C contact arrangements; (3)Immersion cleanable, sealed version available; (4)Meet 5,000V dielectric voltage between coil and contacts; (5)Meet 10,000V surge voltage between coil and contacts (1.2/50μs).

Diagrams

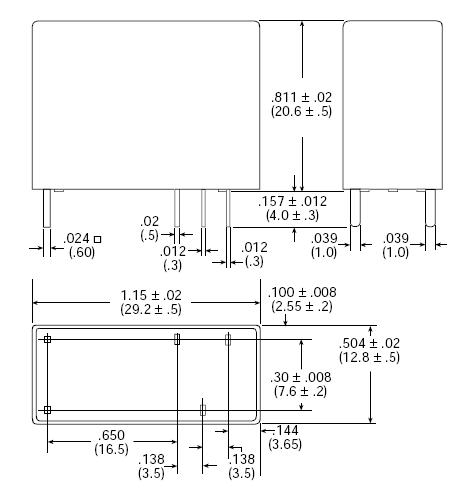

OMI-SH-112LM,000 dimension
