Product Summary

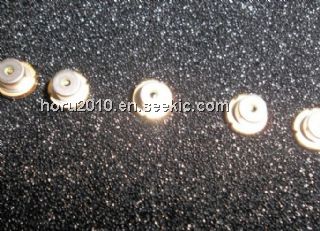

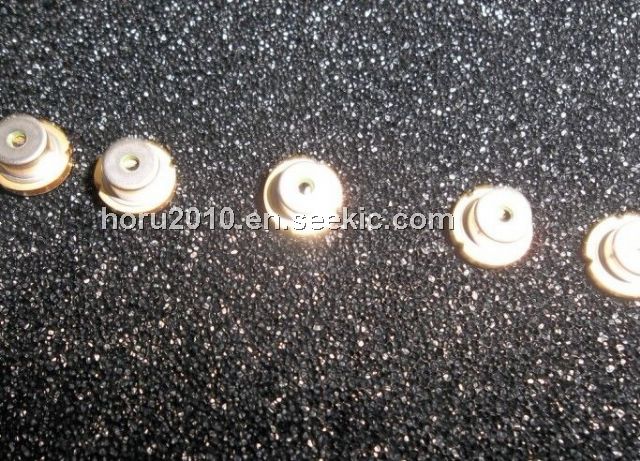

The HL6548FG-A is a 0.65 μm band AlGalnP laser diode (LD) with a multi-quantum well (MQW) structure. It is suitable as a light source for measurement, and various other types of optical equipment.

Parametrics

HL6548FG-A absolute maximum ratings: (1)Optical output power PO: 100 mW; (2)LD reverse voltage VR(LD): 2 V; (3)PD reverse voltage VR(PD): 30 V; (4)Operating temperature Topr: –10 to +60 °C; (5)Storage temperature Tstg: –40 to +85 °C.

Features

HL6548FG-A features: (1)Optical output power : 90mW CW operation; (2)Single longitudinal mode; (3)Visible light output : λp = 660 nm Typ.

Diagrams

HL6548FG-A package dimensions
