Product Summary

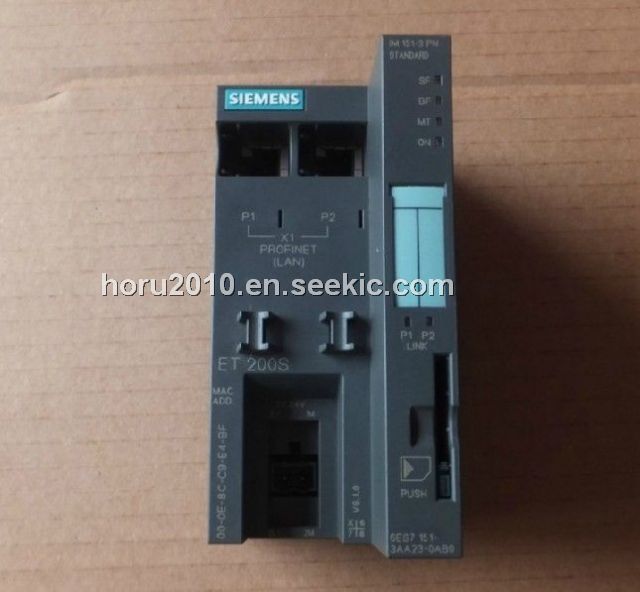

The 6ES7151-3AA23-0AB0 is an interface module. The 6ES7151-3AA23-0AB0 is compatible with interface module IM151-3 PN. The 6ES7151-3AA23-0AB0 directly replaces the predecessor module in an existing system without the need for reconfiguration.
Parametrics
6ES7151-3AA23-0AB0 absolute maximum ratings: (1)Dimension B: 60 mm; (2)Weight: Approx. 150 g; (3)Data transmission rat: 10 Mbps for Ethernet services; (4)Transmission procedure: 100BASE-TX; (5)Rated supply voltage of the electronic: 24 VDC; (6)Current consumption from rated supply voltage: Approx. 200 mA; (7)Power dissipation of the module: Approx. 3.3 W.
Features
6ES7151-3AA23-0AB0 features: (1)It connects the ET 200S with PROFINET IO.; (2)It prepares the data for the assembled electronic modules and motor starters.; (3)It supplies the rear panel bus.; (4)Transfer and backup of the device name on SIMATIC Micro Memory Card; (5)Updating firmware; (6)The reference potential M of the rated supply voltage of the IM151-3 PN to the rail is connected by means of an RC combination and therefore enables earth-free configuration.; (7)Interrupts; (8)The maximum address space is 256 bytes I/O data.; (9)IM151-3 PN can be operated with up to 63 I/O modules.; (10)The maximum bus length at the rear panel bus is 2 m; (11)Grouping of modules within one byte (packing).; (12)Records for IO modules; (13)Option handling.

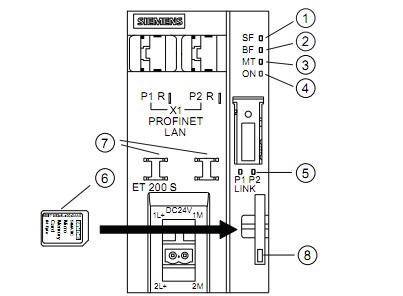

Diagrams
