The A1SY42 is a PC Option Board. The A1SY42 is for use with an IBM AT or 100% compatible computer. The A1SY42 performs a variety of functions, including functioning as a CPU board which performs the same role as an A2USH-S1 CPU, functioning as a network board, which turns the computer into a regular station of MELSECNET/10, and functioning as a CC-Link board, which connects the computer to the CC-Link system. The A1SY42 allows for the easy integration of PLCs and PC computers.
Parametrics
A1SY42 absolute maximum ratings: (1)Part number: A68AD (-S2); (2)Applicable QnA/A Series PLC: QnA/A Series; (3)Number of output channels: 8 channels; (4)Analog output, Voltage: -10 to 0 to +10, input resistance 30k ohms; (5)Analog output, Current: +4 to +20 mA, input resistance 250 ohms; (6)Digital input -2048 to +2047; (7)Maximum resolution, Voltage: 5 mV (1/2000), Current: 20 μA (1/1000); (8)Overall accuracy: ±1%; (9)Maximum conversion time: 2.5 ms; (10)Absolute maximum analog output, Voltage: ±15 VDC, Current: ±30 mA; (11)Insulation method, Photocoupler insulation between input terminals and internal circuity No insulation between channels; (12)I/O points required: 32 points.
Features
A1SY42 features: (1)Operates on either of 10BASE5 or 10BASE2; (2)TCP/IP, UDP/IP protocol support; (3)Selection of three communication modes; (4)UDP/IP broadcasting; (5)PING function; (6)Connection through routers.

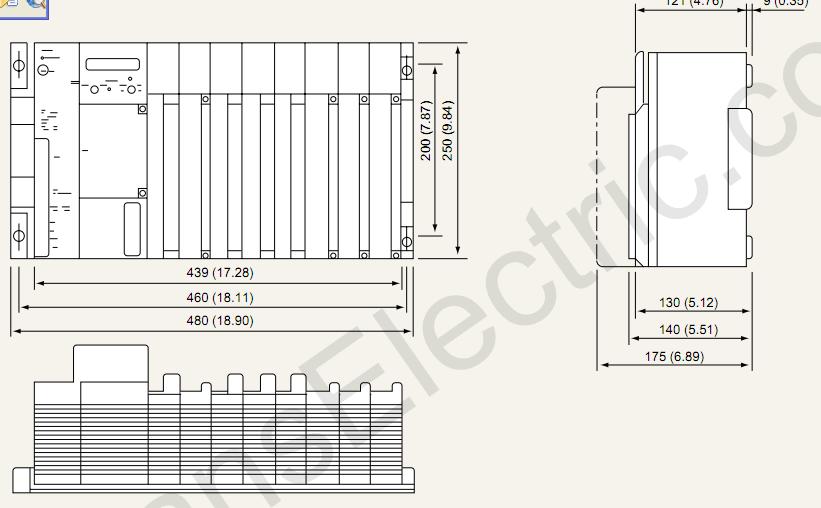

Diagrams
