Product Summary

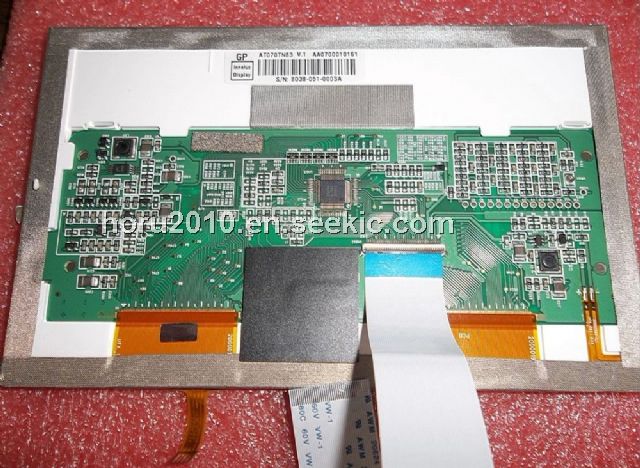

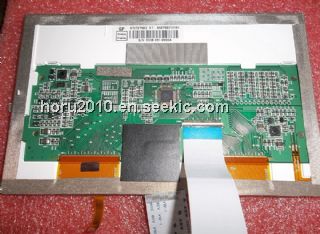

The AT070TN90 V.1 is a kind of 7inch TFT LCD Screen.

Parametrics

AT070TN90 V.1 absolute maximum ratings: (1)DVDD: -0.3 to 5.0 V; (2)AVDD: 6.5 to 13.5 V; (3)VGH: -0.3 to 40.0 V; (4)VGL: -20.0 to 0.3 V; (5)VGH-VGL: 40.0 V; (6)Operation Temperature, TOP: -20 to 70℃; (7)Storage Temperature, TST: -30 to 80℃.

Features

AT070TN90 V.1 features: (1)LCD size: 7.0 inch (Diagonal); (2)Driver element: a-Si TFT active matrix; (3)Resolution: 800 × 3(RGB) × 480; (4)Display mode: Normally White, Transmissive; (5)Dot pitch: 0.0642(W) × 0.1790(H) mm; (6)Active area: 154.08(W) × 85.92(H) mm; (7)Panel size: 162.5(W) ×96.62(H) ×1.43(D) mm; (8)Surface treatment: Anti-Glare; (9)Color arrangement: RGB-stripe; (10)Display Color: 16.7M; (11)Interface: Digital, Parallel 8-bit RGB; (12)Panel power consumption: 0.226W (Typ.).

Diagrams

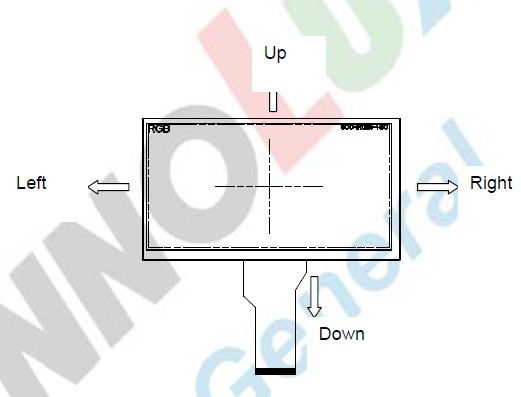

AT070TN90 V.1 circuit diagram
