Product Summary

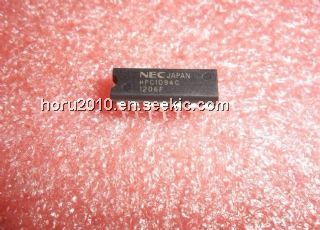

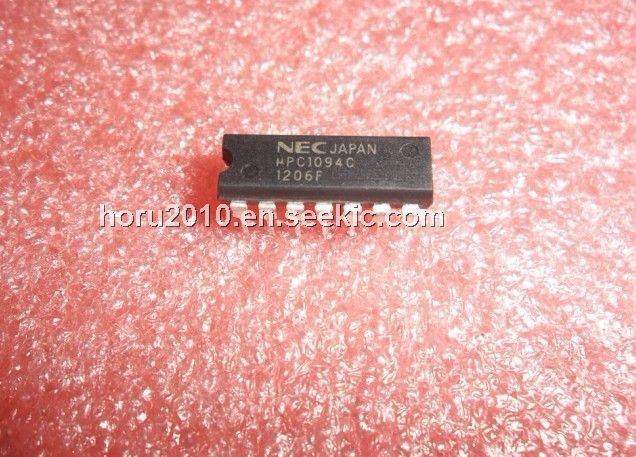

The UPC1094C is a bipolar analog integrated circuit.

Parametrics

UPC1094C absolute maximum ratings: (1)Supply Voltage: 26V; (2)Output Voltage: 26V; (3)Output Current (DC): 100mA; (4)Output Current (Peak): 1.2A; (5)Total Power Dissipation: 570mW; (6)Operating Temperature Range: -20 to +85℃; (7)Storage Temperature Range: -55 to +150℃.

Features

UPC1094C features: (1)Directly switching the gate of an external power MOS FET at high speed. (IC(peakl = 1.2 A); (2)Low supply cu rrent; (3)Internal low voltage stop circuit; (4)Internal ON/OFF control circuit; (5)Over current sense pin appendant; (6)Capable of master slave operation.

Diagrams

UPC1094C dimension
