TC4420

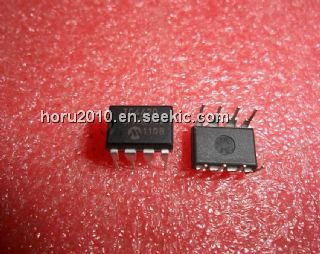

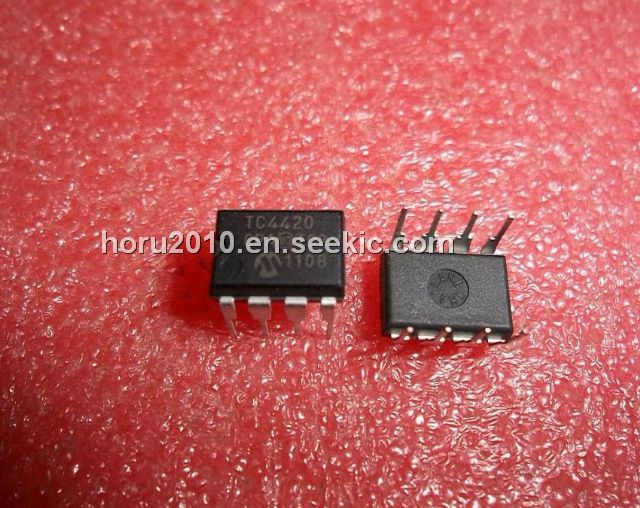

TC4420, single output MOSFET driver, DIP, 20V, 50mA, 730mW, TelCom Semiconductor, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.79 / Piece
10 ~ 100 :	0.59 / Piece
100 ~ 1000 :	0.48 / Piece

PartNumber:: TC4420

Brand:: TelCom Semiconductor, Inc - TelCom | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-28

From Other Seller

Part Number:TC4420
US $0.48 - 0.79
Quantity:

piece

Product Summary

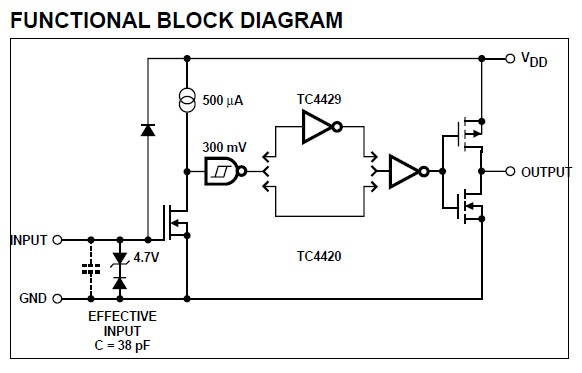

The TC4420 is a 6A (peak), single output MOSFET driver. The device is a non-inverting driver. The driver is fabricated in CMOS for lower power, more efficient operation versus bipolar drivers. The TC4420 has TTL-compatible inputs, which can be driven as high as VDD + 0.3V or as low as -5V without upset or damage to the device. This eliminates the need for external level shifting circuitry and its associated cost and size. The applications of the TC4420 include Switch-Mode Power Supplies, Motor Controls, Pulse Transformer Driver, Class D Switching Amplifiers.

Parametrics

TC4420 absolute maximum ratings: (1)Supply Voltage: +20V; (2)Input Voltage: -5V to > VDD; (3)Input Current (VIN > VDD): 50mA; (4)Power Dissipation, (TA ≤ 70℃) PDIP: 730mW; SOIC: 470mW; CerDIP: 800mW; 5-Pin TO-220: 1.6W; (5)Package Power Dissipation, TC ≤ 25℃ 5-Pin TO-220 (With Heat Sink): 12.5W; (6)Derating Factors (To Ambient) PDIP: 8mW/℃; SOIC: 4mW/℃; CerDIP: 6.4mW/℃; 5-Pin TO-220: 12mW/℃; (7)Thermal Impedances (To Case) 5-Pin TO-220 RθJ-C: 10℃/W; (8)Storage Temperature Range: -65℃ to +150℃; (9)Operating Temperature (Chip): +150℃; (10)Lead Temperature (Soldering, 10 sec): +300℃.

Features

TC4420 features: (1)Latch-Up Protected: Will Withstand >1.5A Reverse Output Current; (2)Logic Input Will Withstand Negative Swing Up to 5V; (3)ESD Protected: 4kV; (4)Matched Rise and Fall Times: 25nsec; (5)High Peak Output Current: 6A Peak; (6)Wide Operating Range: 4.5V to 18V; (7)High Capacitive Load Drive: 10,000pF; (8)Short Delay Time: 55nsec Typ.; (9)Logic High Input, Any Voltage: 2.4V to VDD; (10)Low Supply Current With Logic 1 Input: 450μA; (11)Low Output Impedance: 2.5Ω; (12)Output Voltage Swing to Within 25mV of Ground or VDD.
