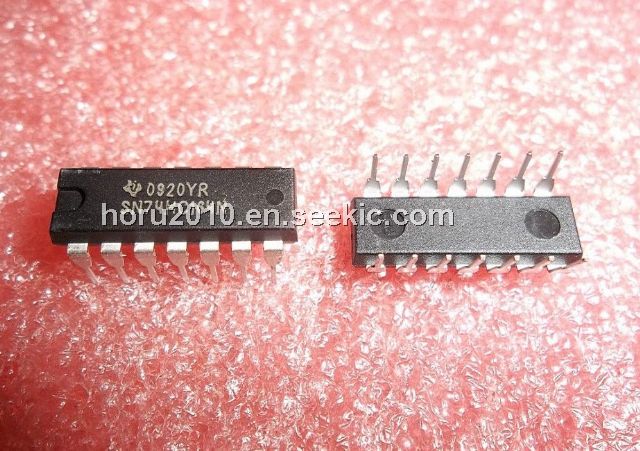

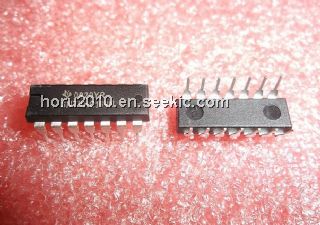

Product Summary
The SN74HC164N is an 8-bit parallel-out serial shift register. The SN74HC164N features AND-gated serial inputs and an asynchronous clear (CLR) input. Data at the serial inputs of the SN74HC164N can be changed while CLK is high or low, provided the minimum setup time requirements are met.
Parametrics
SN74HC164N absolute maximum ratings: (1) Supply voltage range, VCC: -0.5 to 7V; (2) Input clamp current, IIK(VI< 0 or VI> Vcc ) : ±20mA; (3) Output clamp current, IOK (VO< 0 or VO> VCC) : ±20mA; (4) Continuous output current, I (VO= 0 to VCC) : ±25 mA; (5) Continuous current through Vcc or GND: ±50mA; (6) Storage temperature range, Tstg: -65 to +150°C.
Features
SN74HC164N features: (1) Wide Operating Voltage Range of 2 V to 6 V; (2) Outputs Can Drive Up To 10 LSTTL Loads; (3) Low Power Consumption, 80μA Max ICC; (4) Typical tpd=20ns; (5) ±4mA Output Drive at 5V; (6) Low Input Current of 1μA Max; (7) AND-Gated (Enable/Disable) Serial Inputs; (8) Fully Buffered Clock and Serial Inputs; (9) Direct Clear.

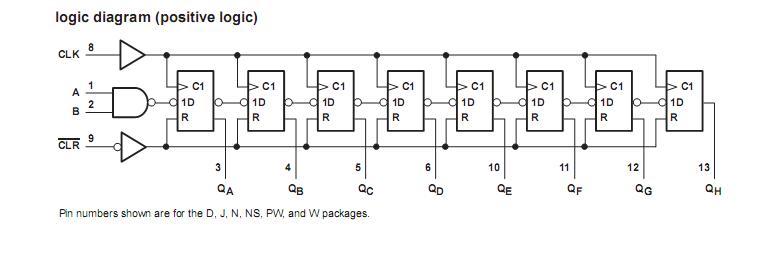

Diagrams
