Product Summary

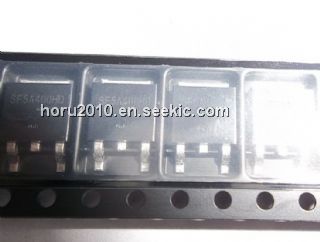

The SF5A400 is a 400V, 5A ultrafast recovery rectifier. The SF5A400 is ideally as boost diode in discontinuous or critical mode power factor corrections. The device is also intended for use as a freewheeling diode in power supplies and other power switching applications. The applications of the include General purpose, Switching mode power supply, Free-wheeling diode for motor application, Power switching circuits, DC-DC converter systems.
Parametrics
SF5A400 absolute maximum ratings: (1)Maximum repetitive reverse voltage, VRRM: 400V; (2)Maximum working peak reverse voltage, VRWM: 400V; (3)Maximum DC blocking voltage, VR: 400V; (4)Maximum average forward rectified current, IF(AV): 5 A; (5)R.M.S forward rectified current, IF(RMS): 7.85 A; (6)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load per diode, IFSM: 100 A; (7)Storage temperature range, Tstg: -45℃ to +150℃; (8)Maximum operating junction temperature, TJ: 150 ℃.
Features
SF5A400 features: (1)High voltage and high reliability; (2)Ultrafast reverse recovery time; (3)High speed switching; (4)Low power loss and High efficiency; (5)Full lead (Pb)-free and RoHS compliant device.
Diagrams
