Product Summary

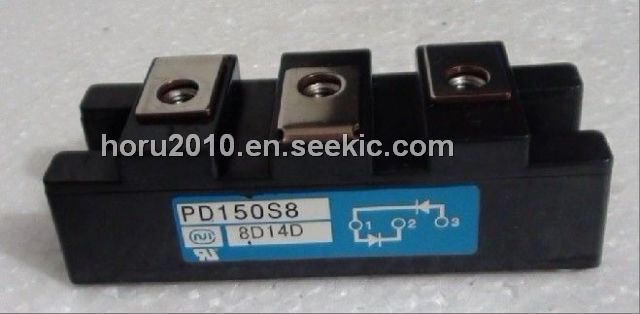

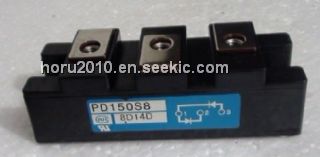

The PD150S8 is a Driver diode.
Parametrics
PD150S8 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRm: 800V; (2)Non repetitive peak reverse voltagem, VRSM: 900V; (3)Average rectifirf output current, IO(AV): 150A; (4)RMS forward current, IF(RMS): 235A; (5)Surge forward current, IFSM: 3200A; (6)I squred t, I2t: 512000A2s; (7)Operating junction temperature range, Tjw: -40 to +150℃; (8)Storage temperature range, Tstg: -40 to +125℃; (9)Isolation voltage, Viso: 2500V.
Features
PD150S8 features: (1)Peak reverse current, IRM: 1mA; (2)Peak forward voltage, VFM: 1.43V; (3)Thermal resistance, Rth(j-c): 0.2℃/W; (4)Thermal resistance, case to fin, greased, Rth(c-f): 0.1℃/W.

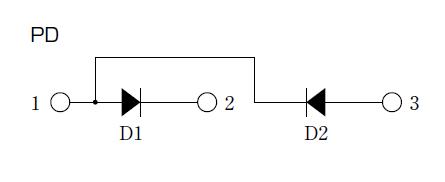

Diagrams
