Product Summary

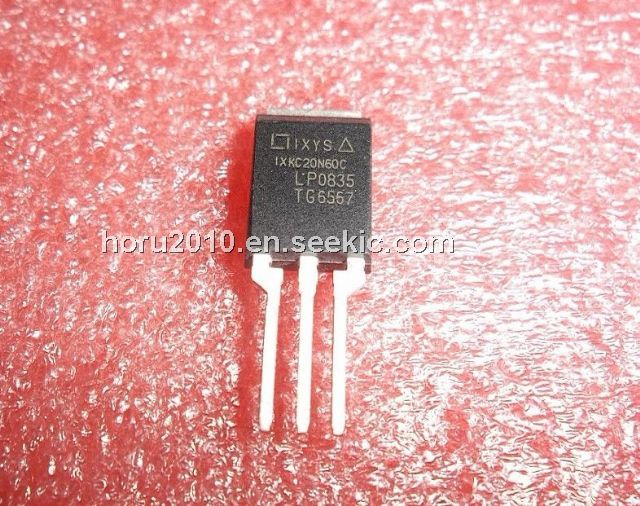

The IXKC20N60C is a CoolMOS Power MOSFET. The applications of the IXKC20N60C include Switched Mode Power Supplies (SMPS), Uninterruptible Power Supplies (UPS), Power Factor Correction (PFC), Welding, Inductive Heating.
Parametrics
IXKC20N60C absolute maximum ratings: (1)VDSS, TJ = 25℃ to 150℃: 600 V; (2)VGS, Continuous: ±20 V; (3)ID25, TC = 25℃; Note 1: 14 A; (4)ID90, TC = 90℃, Note 1: 10 A; (5)ID(RMS), Package lead current limit: 45 A; (6)EAS, Io = 10A, TC = 25℃: 690 mJ; (7)EAR, Io = 20A: 1 mJ; (8)PD, TC = 25℃: 125 W; (9)TJ: -55 to +150℃; (10)TJM: 150℃; (11)Tstg: -55 to +125℃; (12)TL, 1.6 mm (0.062 in.) from case for 10 s: 300℃; (13)VISOL, RMS leads-to-tab, 50/60 Hz, t = 1 minute: 2500 V~; (14)FC, Mounting force: 11 to 65 / 2.4 to 11 N/lb.
Features
IXKC20N60C features: (1)Silicon chip on Direct-Copper-Bond substrate, High power dissipation, Isolated mounting surface, 2500V electrical isolation; (2)3RD generation CoolMOS power MOSFET, High blocking capability; Low on resistance; Avalanche rated for unclamped inductive switching (UIS); (3)Low thermal resistance due to reduced chip thickness; (4)Low drain to tab capacitance(<30pF).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXKC20N60C |
Ixys |
MOSFET 14 Amps 600V 0.19 Rds |
Data Sheet |
Negotiable |
|
||||
