Product Summary

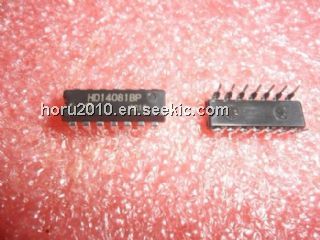

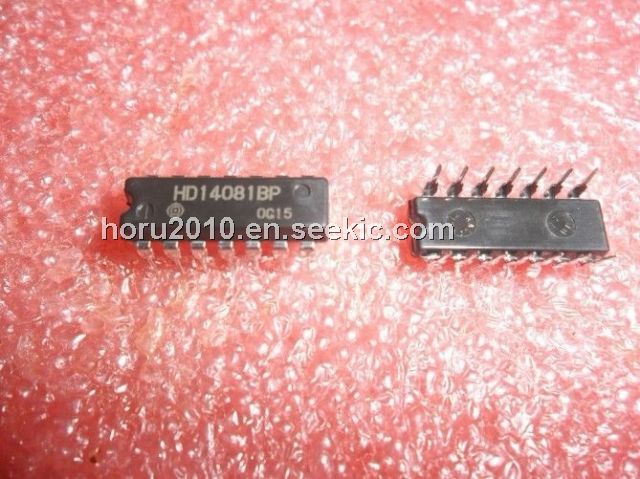

The HD14081BP is a Quadruple 2-input AND Gate.

Parametrics

HD14081BP absolute maximum ratings: (1)VOL: 0 to 0.05V; (2)VOH: 4.95 to 5.0V; (3)VIL: 1.15 to 2.25V; (4)VIH: 2.75V; (5)IOH: -2.1 to 4.2mA; (6)IOL: 0.44 to 0.88mA; (7)Iin: ±1.0μA.

Features

HD14081BP features: (1)Quiescent current=0.5nA typ/pkg@5V; (2)Noise immunity=45%of VDD typ; (3)Capable of driving one low-power schottky TTL load over the rated temperature range; (4)Pin-for pin replacements for CD4071b and MC14071B series.

Diagrams

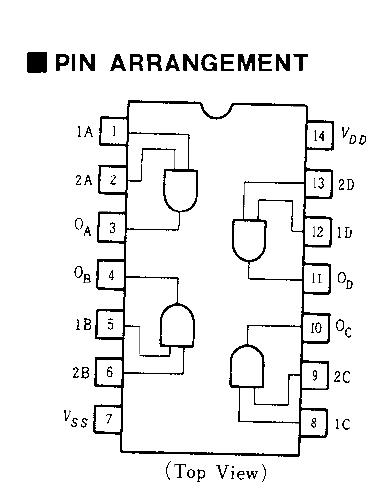

HD14081BP block diagram
