Product Summary

The D2011K is a Gold metallised multi-purpose silicon.

Parametrics

D2011K absolute maximum ratings: (1)Power Dissipation: 70W; (2)Drain – Source Breakdown Voltage: 65V; (3)Gate – Source Breakdown Voltage: ±20V; (4)Drain Current: 8A; (5)Storage Temperature: –65 to 150℃; (6)Maximum Operating Junction Temperature: 200℃.

Features

D2011K features: (1)Simplified amplifier design; (2)Suitable for broad band applications; (3)Low Crss; (4)Low noise; (5)High gain.

Diagrams

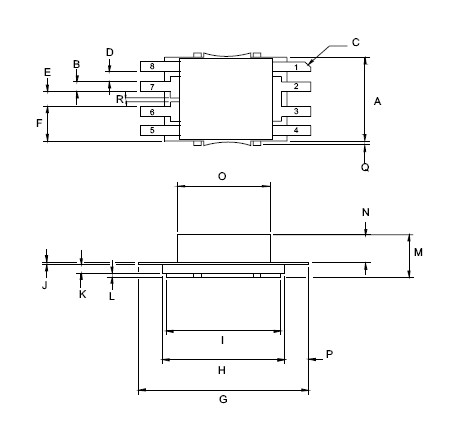

D2011K dimension
