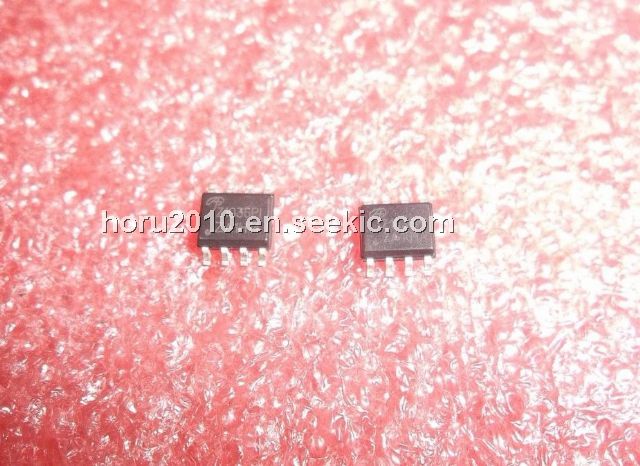

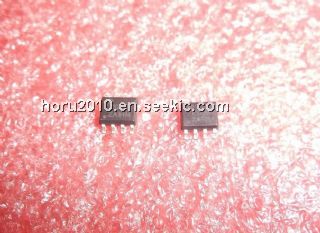

AOZ1036PI

AOZ1036PI, Synchronous Buck Regulator, SOP, 4.5V, 18V, Alpha & Omega Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	0.39 / Piece
10 ~ 99 :	0.26 / Piece
100 ~ 1000 :	0.15 / Piece

PartNumber:: AOZ1036PI

Brand:: Alpha & Omega Semiconductors - AOS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:AOZ1036PI
US $0.15 - 0.39
Quantity:

piece

Product Summary

The AOZ1036PI is a Synchronous Buck Regulator. The AOZ1036 is a high efficiency, easy to use, 5A synchronous buck regulator. The AOZ1036 works from 4.5V to 18V input voltage range, and provides up to 5A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1036 comes in both a 5x4 DFN-8 and an exposed pad SO-8 package and is rated over a -40℃ to +85℃ ambient temperature range. The applications of the AOZ1036PI include Point of load DC/DC converters, LCD TV, Set top boxes, DVD / Blu-ray players/recorders, Cable modems and PCIe graphics cards.

Parametrics

AOZ1036PI absolute maximum ratings: (1)Supply Voltage (VIN) : 20V; (2)LX to AGND : -0.7V to VIN+0.3V; (3)LX to AGND : 23V (<50ns); (4)EN to AGND : -0.3V to VIN+0.3V; (5)FB to AGND : -0.3V to 6V; (6)COMP to AGND : -0.3V to 6V; (7)PGND to AGND : -0.3V to +0.3V; (8)Junction Temperature (TJ) : +150℃; (9)Storage Temperature (TS) : -65℃ to +150℃; (10)ESD Rating(1) : 2.0kV.

Features

AOZ1036PI features: (1)4.5V to 18V operating input voltage range; (2)Synchronous Buck: 55mΩ internal high-side switch and 19mΩ Internal low-side switch; (3)High efficiency: up to 95%; (4)Internal soft start; (5)Output voltage adjustable to 0.8V; (6)5A continuous output current; (7)Fixed 500kHz PWM operation; (8)Cycle-by-cycle current limit; (9)Pre-bias start-up; (10)Short-circuit protection; (11)Thermal shutdown; (12)Thermally enhanced 5x4 DFN-8 and exposed pad SO-8 packages.
