Product Summary

The 74S1053PWR is a 16-bit schottky barrier diode bus-termination array designed to reduce reflection noise on memory bus lines. This device consists of a 16-bit high-speed Schottky diode array suitable for clamping to VCC and/or GND. The 74S1053PWR is characterized for operation from 0℃ to 70℃.

Parametrics

74S1053PWR absolute maximum ratings: (1)Steady-state reverse voltage, VR: 7 V; (2)Continuous forward current, IF: Any D terminal from GND or to VCC: 50 mA; (3)Total through all GND or VCC terminals: 170 mA; (4)Repetitive peak forward current IFRM: Any D terminal from GND or VCC: 200 mA; (5)Total through all GND or VCC terminals: 1.2 A; (6)Continuous total power dissipation at (or below) 25℃ free-air temperature: 625 mW; (7)Operating free-air temperature range: 0℃ to 70℃; (8)Storage temperature range, Tstg: -55℃ to 150℃.

Features

74S1053PWR features: (1)Designed to Reduce Reflection Noise; (2)Repetitive Peak Forward Current to 200 mA; (3)16-Bit Array Structure Suited for Bus-Oriented Systems; (4)Package Options Include Plastic Small-Outline Packages and Standard Plastic 300-mil DIPs.

Diagrams

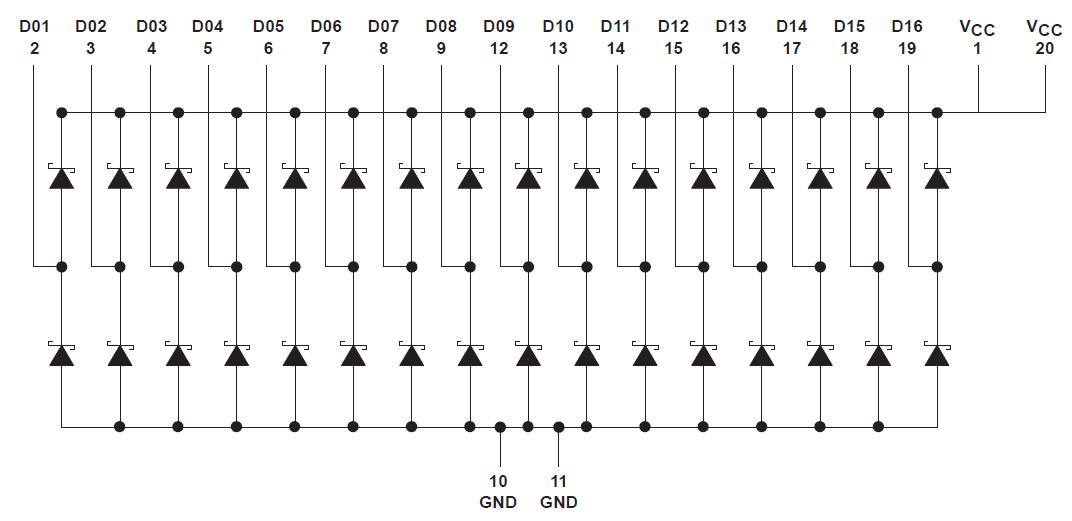

74S1053PWR block diagram
