Product Summary

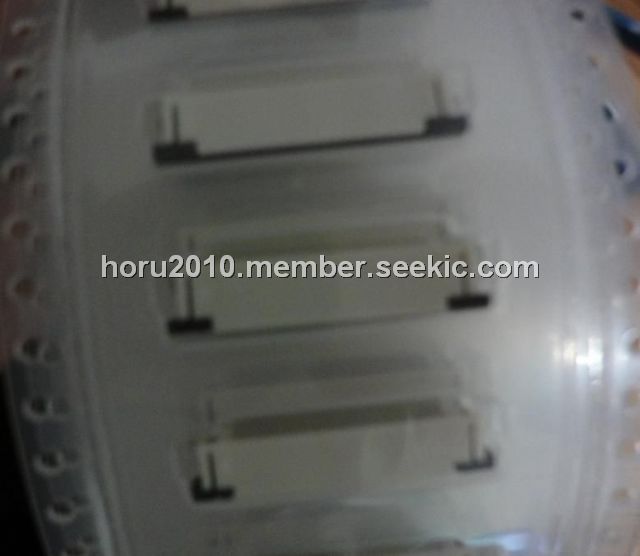

The 52435-3072 is a 0.020" (0.50mm) pitch connector from Molex.
Parametrics
52435-3072 absolute maximum ratings: (1)Pitch: 0.020" (0.50mm); (2)Mounting Type: Surface Mount, Right Angle; (3)Connector Type: Top Contacts; (4)Number of Positions: 30; (5)Locking Feature: Slide Lock; (6)Termination: Solder; (7)FFC, FCB Thickness: 0.30mm.
Features
52435-3072 features: (1)Solder Retention; (2)Zero Insertion Force (ZIF).

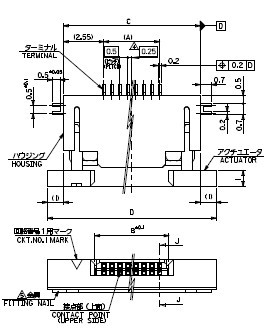

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 52435-3072 |
Molex |
FFC / FPC Connectors RA SMT ZIF TOP 30P top contact style |
Data Sheet |
Negotiable |
|
||||||||||||
