Product Summary

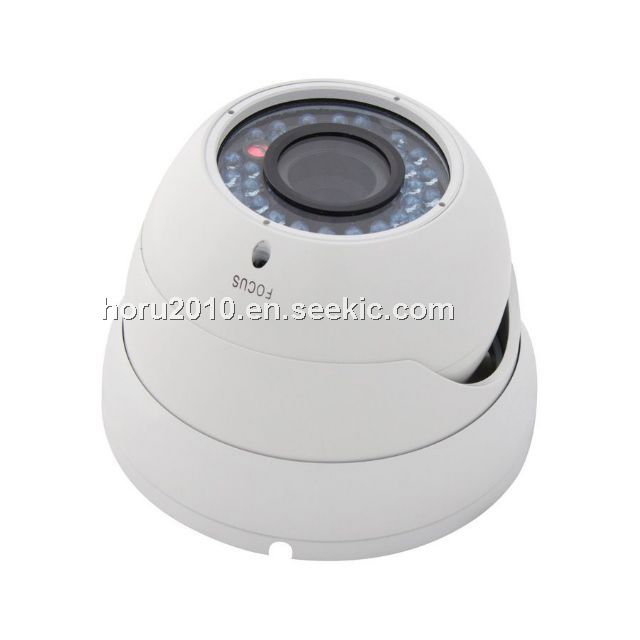

The YX-515PR2 is a LSVT Camera.

Parametrics

YX-515PR2 general specifications: (1)Image Sensor: 1/3“ High Sensitivity Sensor; (2)Video Format: PAL/NTSC; (3)Resolution: 600TVL; (4)Mini Illumination: 0.2Lux (IR OFF), 0Lux (IR ON); (5)S/n ratio more than 52db ( agc off); (6)electronic shutter: 1/50(60)~1/120,000s; (7)blc: auto; (8)white balance: atw; (9)d/n: auto; (10)sync mode: internal; (11)voltage: dc12v; (12)current: <350mA; (13)lens: 3.6mm (2.8mm/6mm is optional); (14)operation temp. : -10 °C~50°C; (15)storage temp. : -20°C~60°C.

Features

YX-515PR2 features: (1)600TVL high resolution; (2)0.2Lux (IR OFF), 0Lux (IR ON); (3)High SNR, image clear and exquisite; (4)IR-CUT filter; (5)ATW, BLC; (6)30m IR range; (7)2.8-12mm fixed iris lens.

Diagrams

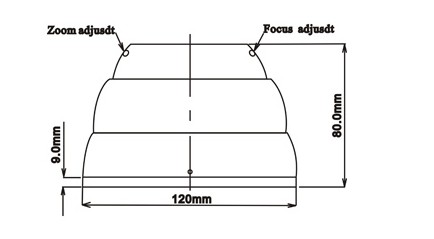

YX-515PR2 package dimensions
