Product Summary

The STF13NK50Z is an N-channel SuperMESH Power MOSFET. The STF13NK50Z is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. The STF13NK50Z complements ST full range of high voltage MOSFETs. The application of the STF13NK50Z includes switching application.

Parametrics

STF13NM60N absolute maximum ratings: (1)Drain-source voltage (VGS = 0), VDS: 500 V; (2)Gate-source voltage, VGS: ±25 V; (3)Drain current (continuous) at TC = 25℃, ID: 12A; (4)Drain current (continuous) at TC = 100℃, ID: 6A; (5)Drain current (pulsed), IDM: 48A; (6)Total dissipation at TC = 25℃, PTOT: 25W; (7)Peak diode recovery voltage slope, dv/dt: 15V/ns; (8)Insulation withstand voltage (RMS) from all three leads to external heat sink (t=1 s; TC = 25℃), VISO: 2500 V; (9)Storage temperature, Tstg: -55 to 150℃; (10)Max. operating junction temperature, Tj: 150℃.

Features

STF13NM60N features: (1)100% avalanche tested; (2)Low input capacitance and gate charge; (3)Low gate input resistance.

Diagrams

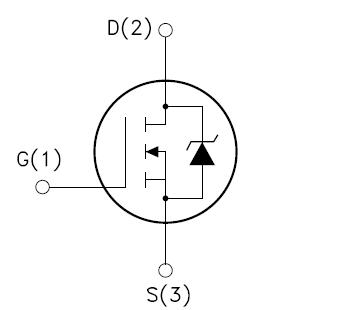

STF13NM60N circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

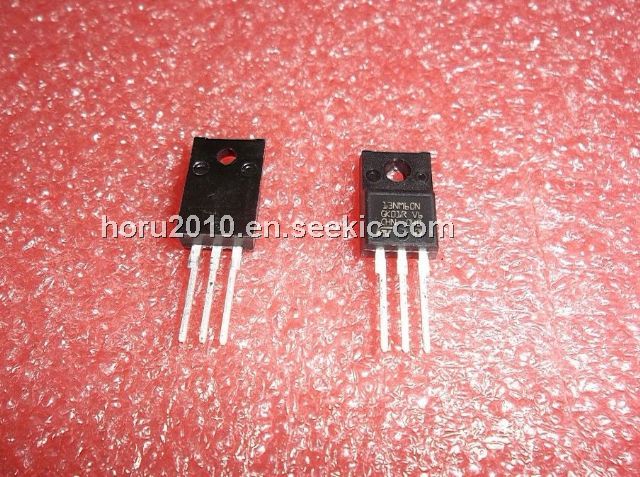

STF13NM60N
STF13NM60N
STMicroelectronics
MOSFET N-CH 600V 11A MDMESH Power MDmesh
Data Sheet
0-1: $2.12
1-10: $1.70
10-100: $1.55
100-250: $1.40
STF13NM60N-H
STF13NM60N-H
STMicroelectronics
MOSFET POWER MOSFET N-CH 600V
Data Sheet
0-605: $1.25
605-1000: $1.06
1000-2000: $1.00
2000-5000: $0.96
