Product Summary

The FDP80N06 N-Channel enhancement mode power field effect transistor is produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pluse in the avalanche and commutation mode. The FDP80N06 is well suited for high efficient switched mode power supplies, active power factor correction, electronic lamp ballast based on half bridge topology.

Parametrics

FDP80N06 absolute maximum ratings: (1)Drain to Source Voltage: 60 V; (2)VGSS Gate to Source Voltage: ±20 V; (3)ID Drain Current -Continuous (TC = 25°C): 80 A, Continuous (TC = 100°C): 65A; (4)IDM Drain Current - Pulsed: 320 A; (5)EAS Single Pulsed Avalanche Energy: 480 mJ; (6)IAR Avalanche Current: 80 A; (7)EAR Repetitive Avalanche Energy: 17.6 mJ; (8)dv/dt Peak Diode Recovery dv/dt: 4.5 V/ns; (9)PD Power Dissipation (TC = 25°C): 176 W; (10)TJ, TSTG Operating and Storage Temperature Range: -55 to +175°C.

Features

FDP80N06 features: (1)RDS(on)= 8.5mΩ ( Typ.)@ VGS = 10V, ID = 40A; (2)Low gate charge(Typ. 57nC); (3)Low Crss(Typ. 145pF); (4)Fast switching; (5)Improved dv/dt capability; (6)RoHS compliant.

Diagrams

FDP80N06 plackage dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

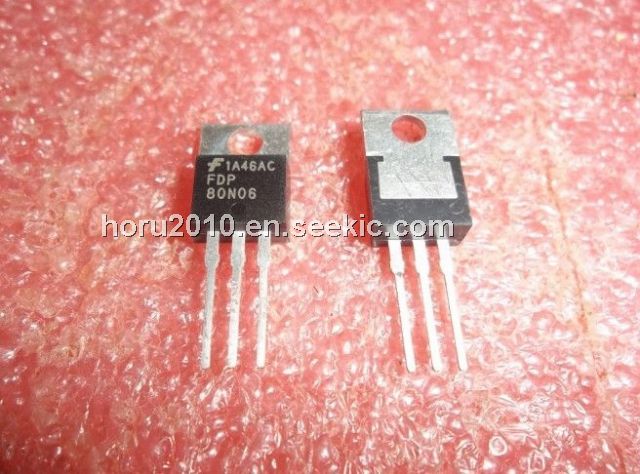

FDP80N06
FDP80N06
Fairchild Semiconductor
MOSFET 60V N-Channel
Data Sheet
0-1: $0.90
1-25: $0.79
25-100: $0.73
100-250: $0.62
