Product Summary

The 1N6263 is a schottky barrier switching diode.

Parametrics

1N6263 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 60V; (2)Working Peak Reverse Voltage: 60V; (3)DC Blocking Voltage: 60V; (4)RMS Reverse Voltage VR(RMS): 42 V; (5)Forward Continuous Current IFM: 15 mA; (6)Non-Repetitive Peak Forward Surge Current: @ t≤1.0s: 50mA, @ t = 10us: 2.0A; (7)Power Dissipation: 400 mW; (8)Thermal Resistance, Junction to Ambient Air: 300 °C/W; (9)Operating Temperature Range Tj: -55 to +125°C; (10)Storage Temperature Range TSTG: -55 to +150°C.

Features

1N6263 features: (1)Low Forward Voltage Drop; (2)Guard Ring Construction for Transient Protection; (3)Fast Switching Time; (4)Low Reverse Capacitance.

Diagrams

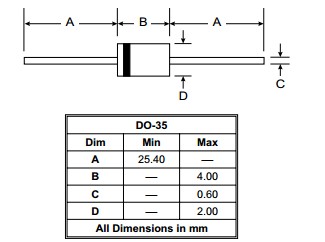

1N6263 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

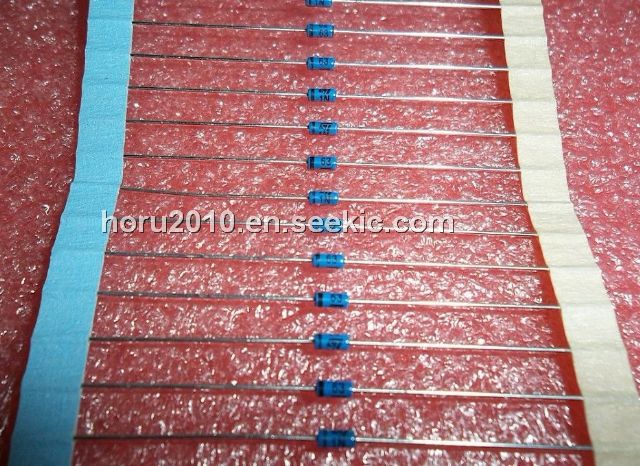

1N6263
1N6263

STMicroelectronics

Schottky (Diodes & Rectifiers) 15mA 60 Volt

Data Sheet

0-1: $0.07
1-10: $0.06
10-100: $0.06
100-250: $0.05
