Product Summary
The 71850-0130 is a 2.54mm connector.
Parametrics
71850-0130 absolute maximum ratings: (1)PC Tail Length (in): 0.120 In; (2)PC Tail Length (mm): 3.05 mm; (3)PCB Locator: No; (4)pcb retention: none; (5)pcb thickness recommended (in): 0.062 in; (6)pcb thickness recommended (mm): 1.60 mm; (7)packaging type: tray; (8)pitch - mating interface (in): 0.100 in; (9)pitch - mating interface (mm): 2.54 mm; (10)plating min: mating (uin): 150; (11)plating min: mating (um): 3.75; (12)plating min: termination (uin): 150; (13)plating min: termination (um): 3.75; (14)polarized to pcb: no; (15)temperature range - operating: -40°c to +105°c; (16)termination interface: style: through hole; (17)current - maximum per contact: 2.5a; (18)voltage - maximum: 250v
Features
71850-0130 features: (1)Circuits (Loaded): 4; (2)Color - Resin: Black; (3)Durability (mating cycles max): 25; (4)Flammability: 94V-0; (5)Glow-Wire Compliant: No; (6)Material - Metal: Phosphor Bronze; (7)Material - Plating Mating: Tin; (8)Material - Plating Termination: Tin; (9)Material - Resin: High Temperature Thermoplastic; (10)Number of Rows: 2; (11)Orientation: Vertical.

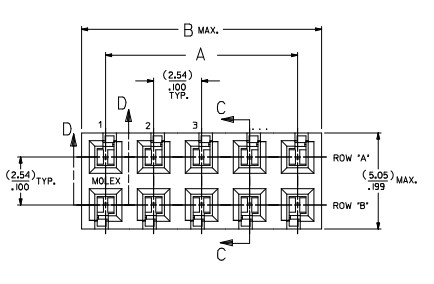

Diagrams
