Product Summary

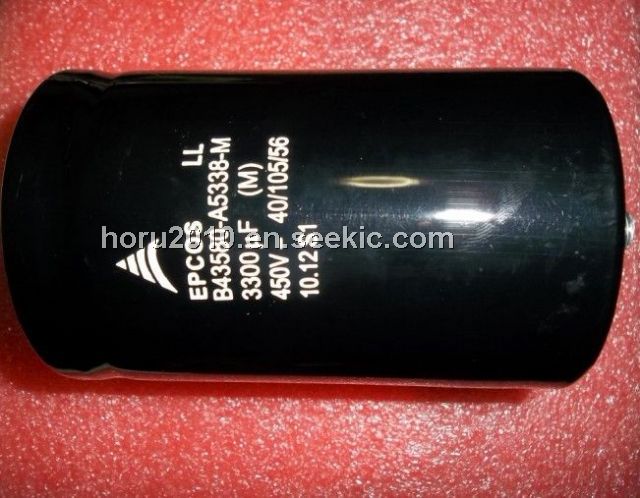

The B43580A5338M is a Capacitor with Screw Terminals. It is used for Frequency converters, Traction, Highly professional power supplies.

Parametrics

B43580A5338M general specifications: (1)Rated voltage UR: 350 to 450 VDC; (2)Surge voltage US: 1,10 · UR (105°C; UR ≤ 400 VDC, 85°C; UR = 450 VDC); (3)Rated capacitance CR: 2200 to 15000uF; (4)Capacitance tolerance: ±20% ΔM.

Features

B43580A5338M features: (1)Maximum reliability; (2)Good thermal characteristics and high ripple current capability; (3)Long useful life; (4)Wide temperature range; (5)All-welded construction ensures reliable electrical contact; (6)Version with optimized construction for base cooling(2-pad solution)available; (7)Version with low-inductance design available.

Diagrams

B43580A5338M package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
B43580A5338M
B43580A5338M
EPCOS
Aluminum Electrolytic Capacitors - Screw Terminal AL-ELKO SCREW 3300UF 450V
Data Sheet
0-24: $72.35
24-25: $70.16
25-50: $68.33
50-100: $67.09
B43580A5338M000
B43580A5338M000

CAP ALUM 3300UF 450V 20% SCREW
Data Sheet
0-32: $55.07
B43580A5338M003
B43580A5338M003
EPCOS
Aluminum Electrolytic Capacitors - Screw Terminal AL-ELKO 3300UF 450V SCREW TERMINALS
Data Sheet
0-10: $190.76
10-15: $173.42
15-30: $157.65
B43580A5338M3
B43580A5338M3

AL-ELKO SCREW TERM 3300UF 450V
Data Sheet
0-32: $76.73
